Part Number: LNF4N / Vendor ID Number: 27 / Custom:

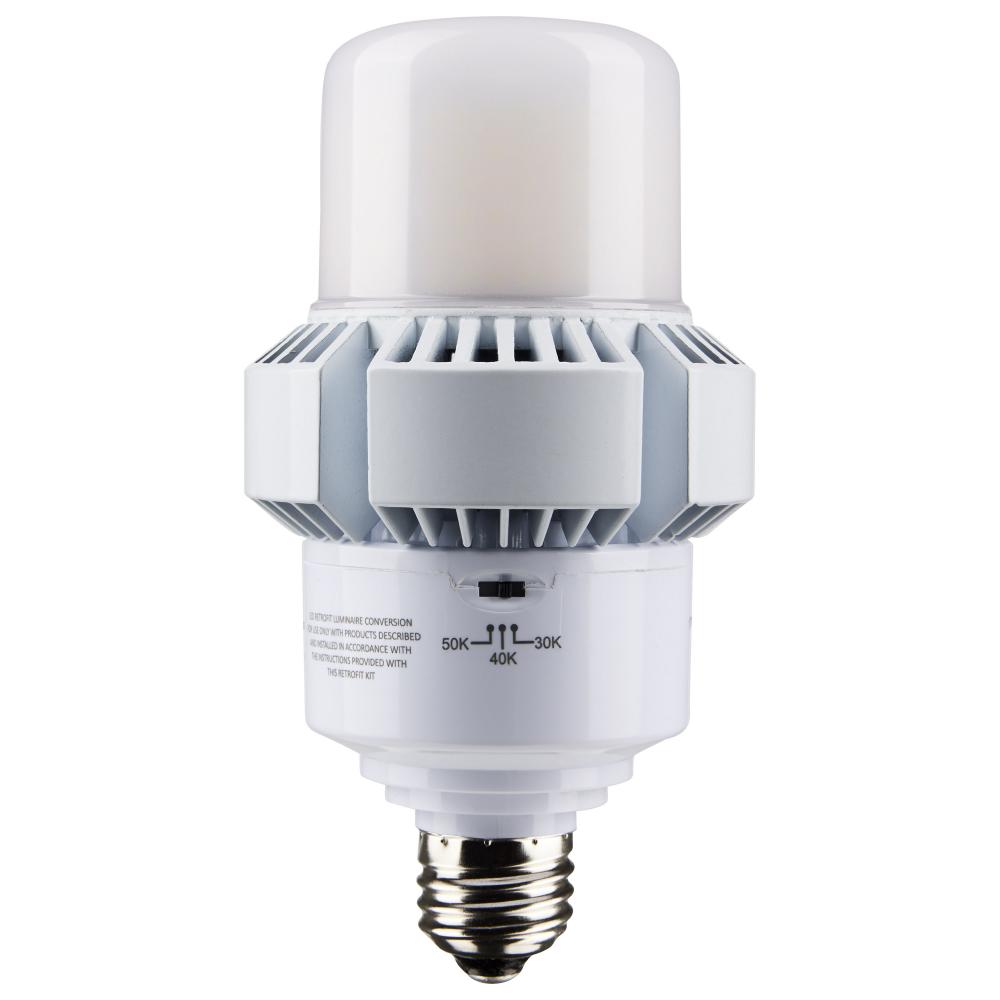

35 Watt; A-Plus 28; LED; CCT Selectable and Wattage Selectable; Medium base; Type B; Ballast Bypass;

35 Watt; A-Plus 28; LED; CCT Selectable and Wattage Selectable; Medium base; Type B; Ballast Bypass;

52
99
Pack Of: 1
0 Available in HOT DEALS 1219 Manufacturer Quantity
COGs: $26.14
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Width: 3.39"
Product Overview
35 Watt; A-Plus 28; LED; CCT Selectable and Wattage Selectable; Medium base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology
Technical Details
Details
Category:
Light Bulbs
Subcategory:
LED Bulbs
Lumens:
3300+
Kelvin:
3001-3500
Finish Family:
White /vendors/vendorImages white.jpg
Category:
LED
Sub-Category:
HID Replacements
Volts:
100V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
AP28
Diameter:
3.39
EA Length:
3.54
Harmonized Codes:
8539.52.0010
Length:
6.26
Lumens:
4550L/2380L
Shap Carton Width:
3.54
Ship Carton Height:
7.48
Ship Weight:
1.13
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.89
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
280
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0542
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - >2600 Lumens
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
China
CRI:
80
Dimmable Function:
Only dimmable through wattage selection switch on lamp
Dimming Type:
Step Dimming
DLC Approved:
No
Efficacy:
130.00/140.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Advanced heat sink design ensures long lifespan, less maintenance
Feature 2:
ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch
Feature 3:
Damp location rated for indoor or outdoor use
Feature 4:
Rated for totally enclosed fixtures
Feature 5:
Reduced jacket size and built-in surge protection
Feature 6:
FCC/RoHS compliant
Feature 7:
Dimmable; 80 CRI light quality
Flourescent Equivalent:
85W
Has Driver:
No
Has Emergency Battery:
No
HID Equivalent:
100W-175W
Housing Color:
White
Incandescent Equivalent:
300W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP64
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
S13162, Satco's 35-watt medium base A-Plus 28 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT and PowerQuick wattage selectable technologies mean more versatility a
Material:
Aluminum
Minimum Compartment Size:
Length: 6 in. Width: 6 in. Height: 8.5 in.
Operating Frequency:
50/60Hz
Operating Temp:
-22C (-30F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
17
RoHS Compliant:
Yes
Romance Copy:
Satco's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce high-ou
SDS class:
LED_Lamp
Short Description:
35W/AP28/LED/CCT/100-277V/E26
Specification Notes:
Lumen/Watt/CCT Ratio Chart in Documents.
Style:
Contemporary
Surge Protection:
Built-in surge protection - 2.5KV
Technology:
LED
Title 20 Compliant:
No
Wattage Selectable:
Yes
Watts:
35W/17W
